05/05/2025

Recursive MakeConsidered Harmful

Key Points

Sourcing a file.

When a script is sourced (using the . or source command), it inherits the positional parameters ($@, $1, $2, etc.) that were available in the calling shell’s environment at the time of the sourcing. This means the sourced script can access and use these arguments as if they were passed directly to it.

. auto/configure

source auto/options

Nginx build system

Cool Tricks

1. heredoc

$ cat << END
> $0: This will write until
> you see an .........
> END
-bash: This will write until
you see an .........

Here END is a delimitter

Nginx Reference /auto/have file.

# Copyright (C) Igor Sysoev
# Copyright (C) Nginx, Inc.


cat << END >> $NGX_AUTO_CONFIG_H

#ifndef $have
#define $have  1
#endif

END

08/05/2025

The Slab Allocator: An Object-Caching Kernel Memory Allocator

1. Slab Allocator Deep dive week, one of my teammates implemented a slab allocator and that led to me reading their code and also see how slab allocators work in linux.
2. Chapter 8 Slab Allocator

Object Caching

#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <time.h>

#define ITERATIONS 1000

typedef struct {
    int id;
    char name[256];
    double values[128];
} MyStruct;

int main() {
    clock_t start, end;
    double time_malloc_free, time_memset_reuse;

    // ==== CASE 1: malloc + free each time ====
    start = clock();
    for (int i = 0; i < ITERATIONS; ++i) {
        MyStruct *obj = (MyStruct *)malloc(sizeof(MyStruct));
        if (!obj) {
            fprintf(stderr, "malloc failed\n");
            return 1;
        }
        obj->id = i;  // Simulate some usage
        free(obj);
    }
    end = clock();
    time_malloc_free = ((double)(end - start)) / CLOCKS_PER_SEC;
    printf("Time with malloc + free each time: %f seconds\n", time_malloc_free);

    // ==== CASE 2: allocate once, reuse with memset ====
    MyStruct *obj = (MyStruct *)malloc(sizeof(MyStruct));
    if (!obj) {
        fprintf(stderr, "malloc failed\n");
        return 1;
    }

    start = clock();
    for (int i = 0; i < ITERATIONS; ++i) {
        memset(obj, 0, sizeof(MyStruct));  // Reset fields
        obj->id = i;  // Simulate some usage
    }
    end = clock();
    time_memset_reuse = ((double)(end - start)) / CLOCKS_PER_SEC;
    printf("Time with single malloc + memset reuse: %f seconds\n", time_memset_reuse);

    free(obj);
    return 0;
}

Time with malloc + free each time: 0.000226 seconds
Time with single malloc + memset reuse: 0.000046 seconds

Slab Allocator Implementation

-> Unix Internals The new frontiers - Uresh Vahalia

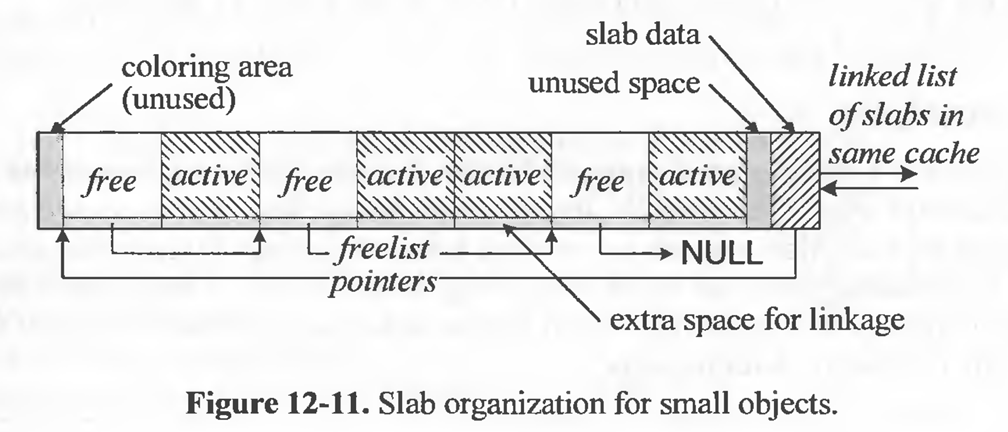

Notice the freelist pointer at the end of every block.

// Get the address of the freelist linkage stored at the end of the buffer
static inline void** get_freelist_linkage(void* buffer) {
    return (void**)((uint8_t*)buffer + BUFFER_SIZE - sizeof(void*));
}

10/05/2025

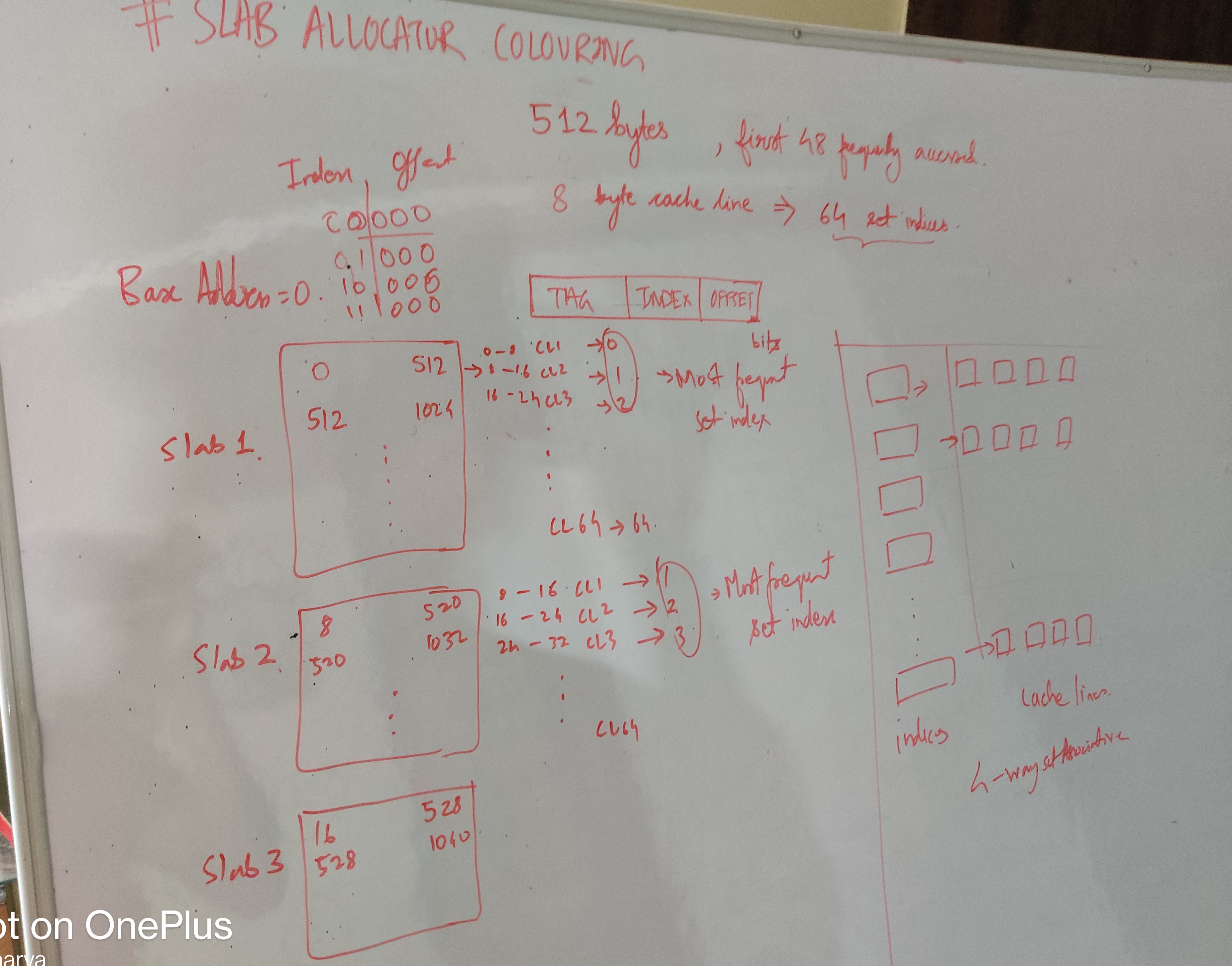

Per CPU Slab Allocator (In Progress)

Extending the Slab Allocator to Many CPUs and Arbitrary Resources

17/05/2025

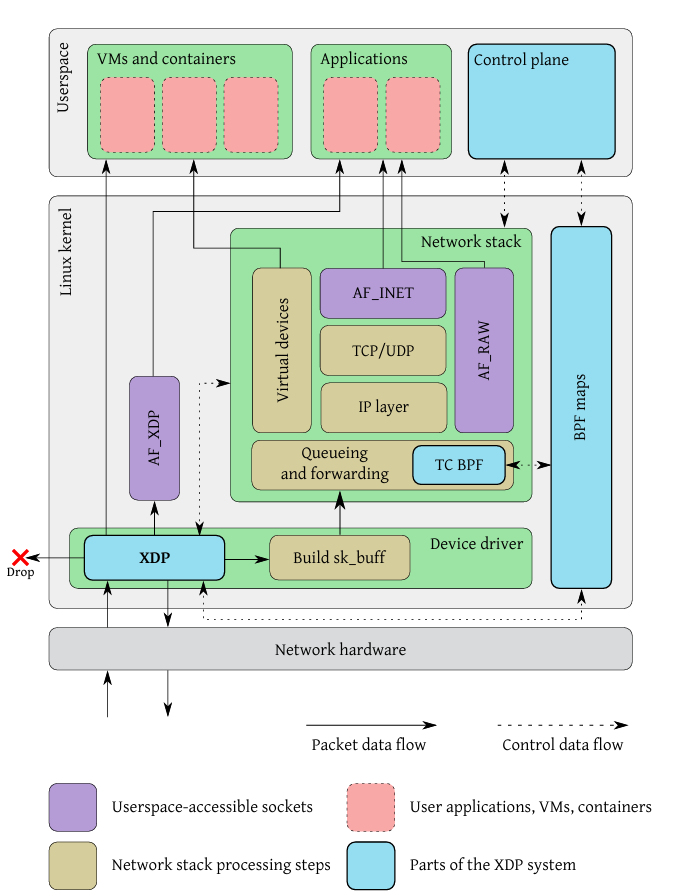

One of our teams presented the new LB which uses XDP as its core. xDP

1. While XDP allows packet processing to move into the operating system for maximum performance, it also allows the programs loaded into the kernel to selectively redirect packets to a special user-space socket type, which bypasses the normal networking stack, and can even operate in a zero-copy mode to further lower the overhead.

1. The infrastructure to execute the program is contained in the kernel as a library function, which means that the program is executed directly in the device driver, without context switching to userspace. (Green box)

2. The program is executed at the earliest possible moment after a packet is received from the hardware, before the kernel allocates its per-packet sk_buff data structure or performs any parsing of the packet.

3. After parsing the packet data, the XDP program can use the context object to read metadata fields associated with the packet, describing the interface and receive queue the packet came from,

4. The context object also gives access to a special memory area, located adjacent in memory to the packet data. The XDP program can use this memory to attach its own metadata to the packet, which will be carried with it as it traverses the system.

5. ALso make use of persistent bpf maps.

6. Can do any transformation on the packet.

 [Network Hardware]
        │
        ▼
[NIC receives packet]
        │
        ▼
[Hardware IRQ or NAPI polling]
        │
        ▼
[NIC Driver (in Kernel)]
        │
        ├── XDP Program Attached to thc NIC?
        │       │
        │       ├── Yes ─► [Run eBPF XDP Program (in kernel)]
        │       │             │
        │       │             ├── XDP_DROP  ──► Drop packet (early exit)
        │       │             ├── XDP_TX    ──► Send back out same NIC
        │       │             ├── XDP_REDIRECT ─► Send to other interface or CPU
        │       │             └── XDP_PASS  ──► Continue normal processing
        │       │
        │       └── No ──────► Continue
        │
        ▼
[Allocate sk_buff (socket buffer)]
        │
        ▼
[Pass sk_buff to Kernel Networking Stack]
        │
        ├── Netfilter / iptables
        ├── IP layer
        ├── TCP/UDP
        └── Socket receive queue
        ▼
[Userspace reads packet via recv()/poll() etc.]
